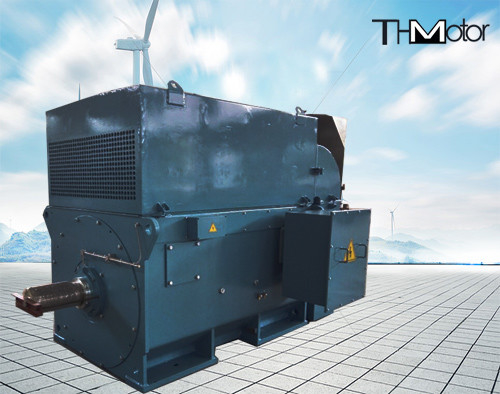

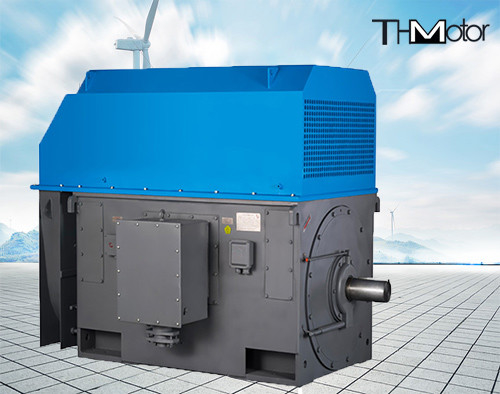

Y800 Squirrel Cage Motor Listrik Tegangan Tinggi 1500r/Min

Detail produk:

Tempat asal:	Cina
Nama merek:	THMotor
Sertifikasi:	CE
Nomor model:	Y800-4

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	USD 20000-100000
Kemasan rincian:	Kemasan layak laut
Waktu pengiriman:	70 HARI
Menyediakan kemampuan:	100SET/TAHUN

Kontak

Detil Deskripsi produk

Nama Produk:	Y800 Kandang Tupai Besar Motor Listrik Tegangan Tinggi Bantalan Bergulir	Rentang daya:	400-6000kw
Tegangan:	6000v-11000v	Kisaran kecepatan:	100rpm-3600rpm
Frekuensi:	50Hz, 60Hz	Metode pendinginan:	IC01、IC411IC611
tingkat IP:	IP23, IP54, IP55	Polandia:	2,4,6,8,12,16
Menyoroti:	Y800 Motor Listrik Tegangan Tinggi , motor listrik sangkar tupai Y800 , motor listrik sangkar tupai 1500r / mnt

Y800 Kandang Tupai Besar Motor Listrik Tegangan Tinggi Bantalan Bergulir

data dalam bingkai dan RPM yang berbeda seperti tabel di bawah ini

model	kekuasaan (kW)	kecepatan (r/mnt)	nilai arus (SEBUAH)	efisien (%)	P,F	arus terkunci	torsi terkunci	Tm
Y710-6-4	2500	1500	175.2	95.8	0,86	7.0	0,5	1.8
Y710-7-4	2800		196.0	95.9
Y710-8-4	3150		220.3	96.0
Y710-9-4	3550		248.0	96.1
Y800-6-4	4000		275.9	96.2	0,87
Y800-7-4	4500		310.4	96.2
Y800-8-4	5000		344.5	96.3
Y800-9-4	5600		385.9	96.3
Y900-6-4	6300		433.7	96.4
Y900-7-4	7100		488.2	96,5
Y900-8-4	8000		549.5	96.6
Y1000-6-4	9000		577.5	96.7
Y1000-7-4	10000		685.5	96.8
Y710-6-6	2000	1000	140.6	95.5	0,86	6.5	0.6	1.8
Y710-7-6	2240		157.3	95.6
Y710-8-6	2500		175.4	95.7
Y800-6-6	2800		196.2	95.8
Y800-7-6	3150		220.5	95.9
Y800-8-6	3550		248.2	96.0
Y900-6-6	4000		279.4	96.1
Y900-7-6	4500		314.0	96.1
Y900-8-6	5000		344.9	96.2	0,87
Y900-9-6	5600		386,3	96.2
Y1000-6-6	6300		434.1	96.3
Y1000-7-6	7100		488.7	96.4
Y100-8-6	8000		550.1	96,5
Y710-6-8	1600	750	111,8	95.0	0.82	6.5	0.6	1.8
Y710-7-8	1800		128.5	95.1
Y710-8-8	2000		142,7	95.2
Y710-9-8	2240		159.6	95.3
Y800--6-8	2500		178.0	95.4	0.83
Y800-7-8	2800		199.1	95.5
Y900-6-8	3150		223.8	95.6
Y900-7-8	3550		251.9	95.7	0,84
Y1000-6-8	4000		280.3	95.8
Y1000-7-8	4500		315.0	95.9
Y1000-8-8	5000		349.6	96.0
Y710-6-10	1250	600	95.5	94.5	0.8	6.0	0.6	1.8
Y710-7-10	1400		106.8	94.6
Y710-8-10	1600		109.3	94.7
Y800-6-10	1800		135.3	94.8	0,81
Y800-7-10	2000		150.2	94.9
Y800-8-10	2240		168.0	95.0
Y900-6-10	2500		185.1	95.1	0.82
Y900-7-10	2800		207.1	95.2	0.82
Y1000-6-10	3150		229.9	95.3	0.83
Y1000-7-10	3550		258.8	95.4	0.83
Y1000-6-12	2500	500	190.3	94.8	0.8
Y1000-7-12	2800		212.9	94.9
Y1000-8-12	3150		239.3	95.0
Y1000-9-12	3550		269.4	95.1
Y710-1-4	3150	1500	361.8	96.3	0,87	6.5	0,5	1.8
Y710-2-4	3550		407.7	96.3
Y710-3-4	400		458.9	96.4
Y710-4-4	4500		516.9	96.4
Y800-1-4	5000		566.6	96,5	0,88
Y800-2-4	5600		634.6	96,5
Y800-3-4	6300		713.2	96.6
Y900-1-4	7100		802.9	96.7
Y900-2-4	8000		903,7	96.8
Y900-3-4	9000		1015.6	96.9
Y710-1-6	2240	1000	261.0	96.0	0,86	6.5	0.6	1.8
Y710-2-6	2500		291.1	96.1
Y710-3-6	2800		326.0	96.1
Y710-4-6	3150		366.4	96.2
Y800-1-6	3550		412.9	96.2
Y800-2-6	4000		465.3	96.3
Y800-3-6	4500		522.9	96.3
Y800-4-6	5000		580.4	96.4
Y900-1-6	5600		642.5	96.4	0,87
Y900-2-6	6300		722.1	96,5
Y900-3-6	7100		812,9	96.6
Y1000-1-6	8000		915.1	96.7
Y1000-2-6	9000		1028.4	96.8
Y1000-3-6	1000		1141.5	96.9
Y710-1-8	1800	750	213.6	95.4	0,85	6.5	0.6	1.8
Y710-2-8	2000		237.1	95.5
Y710-3-8	2240		265.3	95.6
Y800-1-8	2500		295.7	95.7
Y800-2-8	2800		330.9	95.8
Y800-3-8	3150		372.2	95.8
Y800-4-8	3550		419.1	95.9
Y900-1-8	4000		471.7	96.0	0,86
Y900-2-8	4500		514.0	96.1
Y900-3-8	5000		582.2	96.2
Y1000-1-8	5600		651.4	96.2
Y1000-2-8	6300		732.0	96.3
Y1000-3-8	7100		824.1	96.4
Y1000-4-8	8000		927.6	96,5
Y710-1-10	1600	600	195.3	96.0	0.83	6.0
Y710-2-10	1800	600	219,4	95.1	0.83	6.0
Y7103-10	2000	600	243.6	95.2	0.83	6.0	0.6	1.8
Y800-1-10	2240		272.5	95.3
Y800-2-10	2500		303,8	95.4
Y800-3-10	2800		339.9	95.5
Y900-1-10	3150		377.5	95.6	0,84
Y900-2-10	3550		425.0	95.7
Y900-3-10	4000		478.3	95.8
Y900-4-10	4500		538.1	95.8
1000-1-10	5000		597.3	95.9
Y1000-2-10	5600		668.9	95.9
Y1000-3-10	6300		751.8	96
Y1000-4-10	7100		847.2	96
Y710-1-12	1120	500	144.4	94.5	0,79	6.0	0.6	1.8
Y710-2-12	1250		161.0	94.6
Y710-3-12	1400		180.1	94.7
Y800-1-12	1600		203.2	94.7	0,80
Y800-2-12	1800		228.4	94.8
Y800-3-12	2000		253,5	94.9
Y800-4-12	2240		283.6	95.0
Y900-1-12	2500		312.0	95.2	0,81
Y900-2-12	2800		349.0	95.3
Y900-3-12	3150		392.3	95.4
Y1000-1-12	3550		441.6	95.5
Y1000-2-12	4000		497.1	95.6
Y1000-3-12	4500		559.2	95.6
Y1000-4-12	5000		620.7	95.7
Y710-1-16	630	375	89.2	93.1	0.73	6.0	0.6	1.8
Y710-2-16	710		100.3	93.3
Y710-3-16	800		112,9	93.4
Y710-4-16	900		126.9	93.5
Y800-1-16	1000		138.9	93.6	0,74
Y800-2-16	1120		155.4	93.7
Y800-3-16	1250		173.3	93.8
Y800-4-16	1400	375	193,9	93.9
Y900-1-16	1600		218.4	94.0	0,75	6.0	0.6	1.8
Y900-2-16	1800		245.4	94.1
Y900-3-16	2000		272.4	94.2
Y1000-1-16	2240		304.8	94.3
Y1000-2-16	2500		339.8	94.4
Y1000-3-16	2800		380.2	94.5
